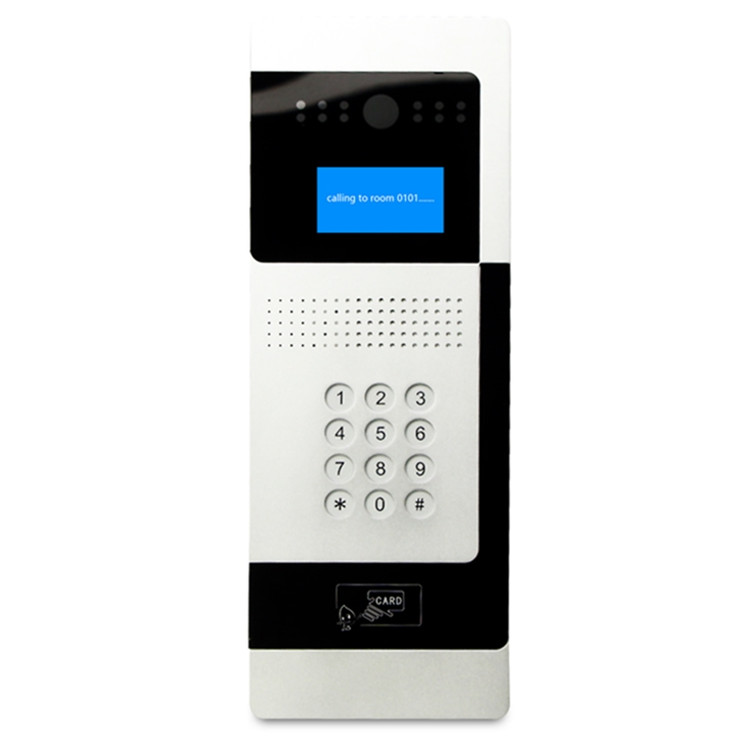

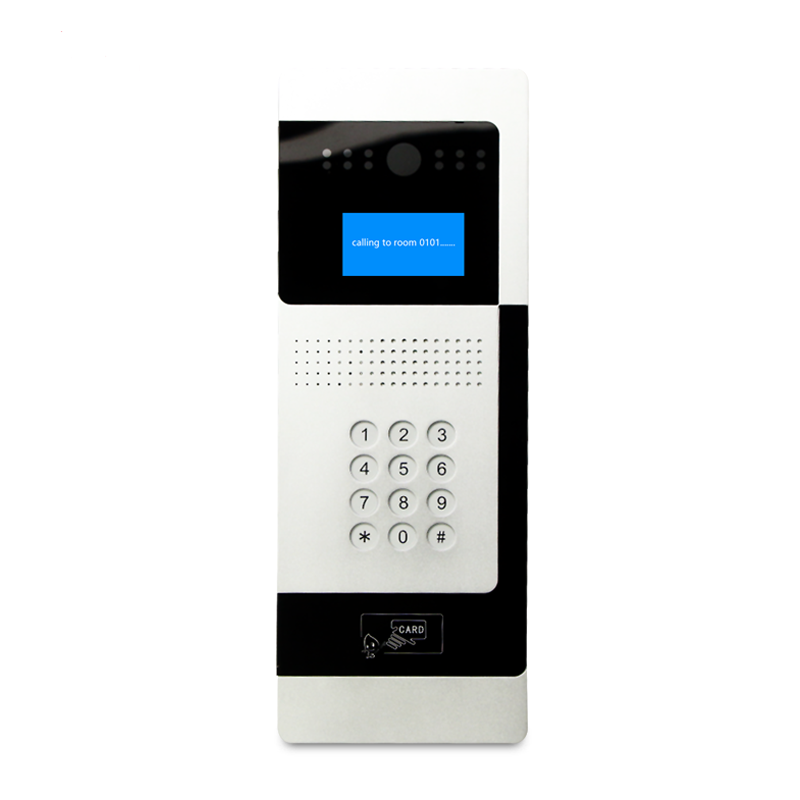

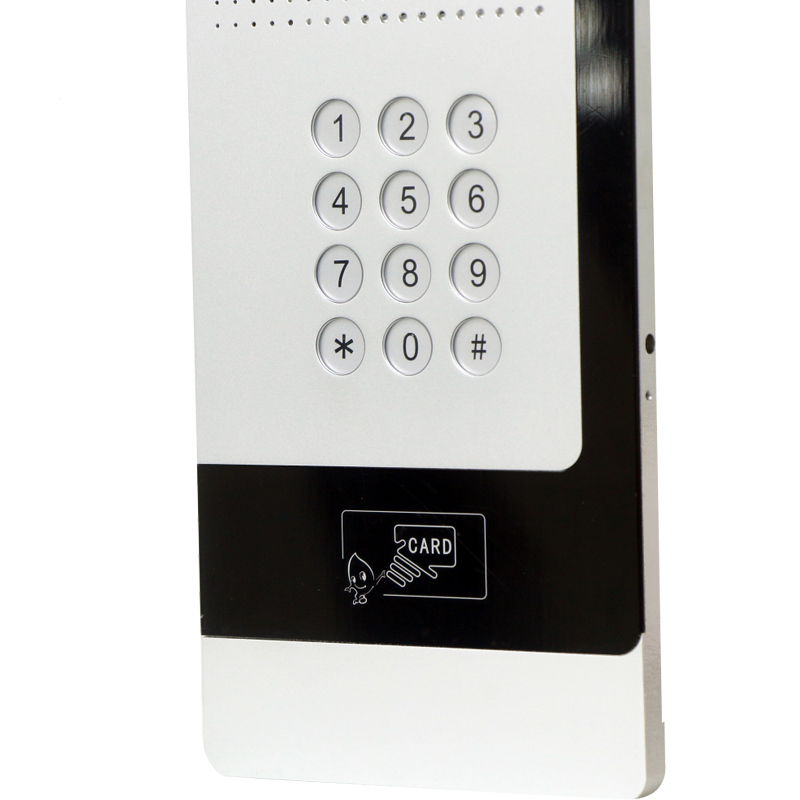

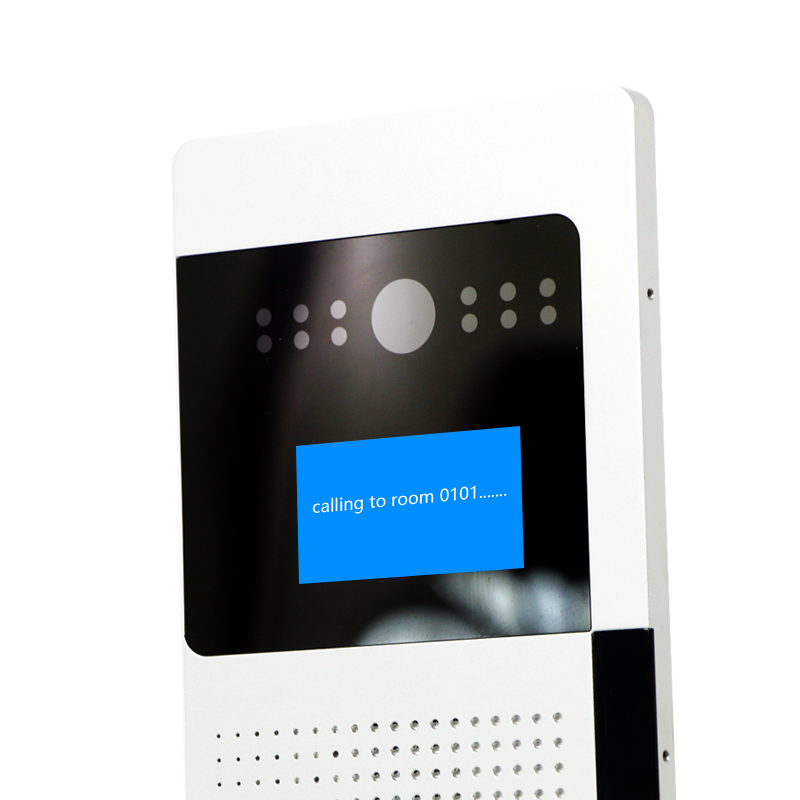

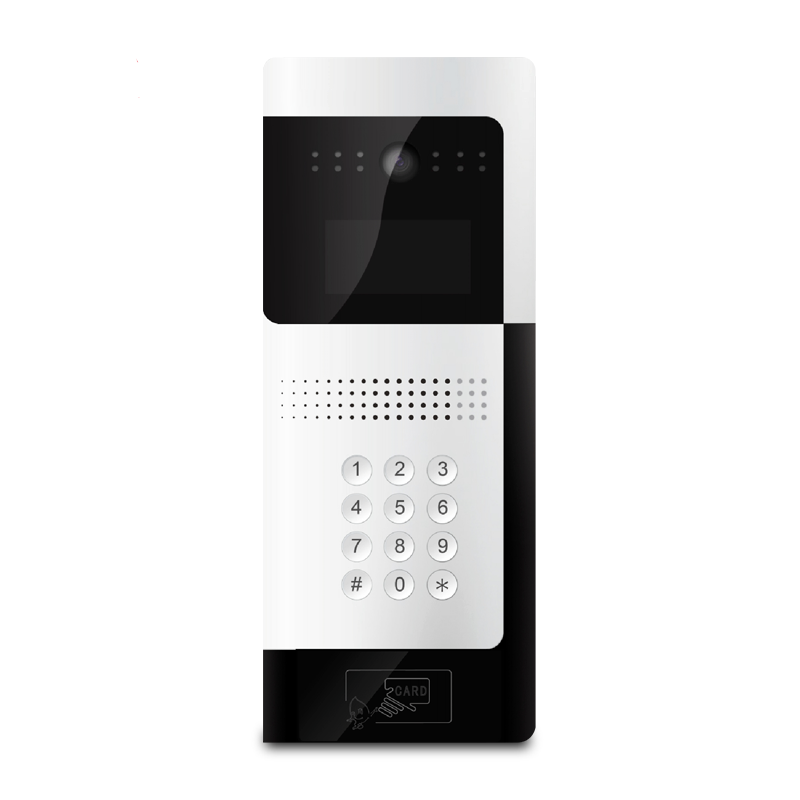

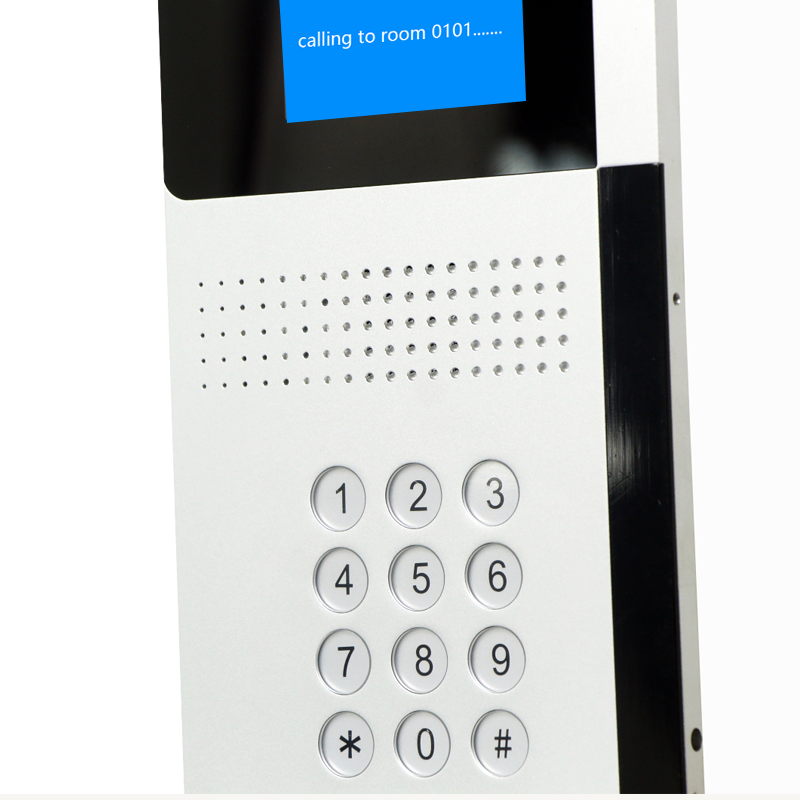

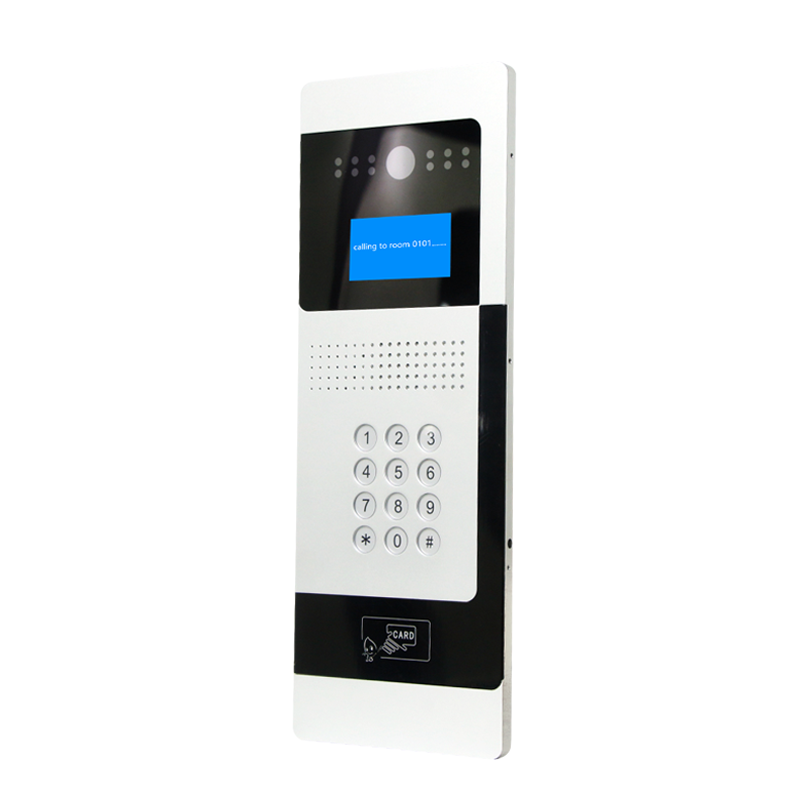

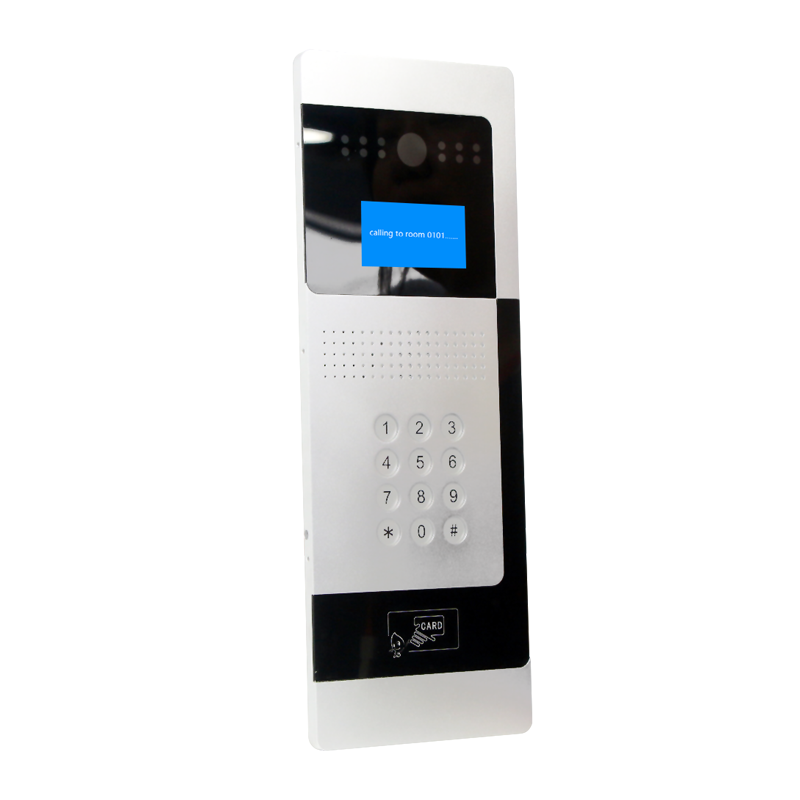

درب باز کن تصویری TC-3000D-J

■Digital TCP /IP Intercom

■Linux OS

■Color CMOS 1.0 Mega Pixel

■Video Intercom

■Support Up to 500 Indoor monitors

Model : TC-3000D-J

System :

OS Embedded Linux

CPU ARM926

Camera Image Sensor 1.0 MegapixelHDColorCMOS

Supplement Light White LEDs

Viewing Angle Horizontal: 115°; Vertical:90°

Display :

Operation Physical Button

Color Silver+Black

Audio :

Input Built-in Microphone

Output Built-in Loudspeaker

Codec G.711 U

Compression Rate 64 kbps

Audio Quality Noise Suppression & Echo Cancellation

Capacity: Link Indoor Station 500

Network :

Ethernet RJ45, 10/100 Mbps adaptive

Protocol TCP/IP

PoE IEEE802.3af/at

Alarm Input Door inspection:+ / - & Tamper detection:+ /-

Relay Output NO/COM/NC

General :

Power Supply DC 12V, Connector

Operating Temperature -25°C ~ +70°C

Operating Humidity 10~90%

Application Environment Outdoor

IP Protection IP54

Installation Flush Mount

Dimension (WxHxD) 145 x 405 x 55.2(mm)

Material Acrylic panel+aluminum alloy body+PC bottom shell

Door Lock Relay Unlock
