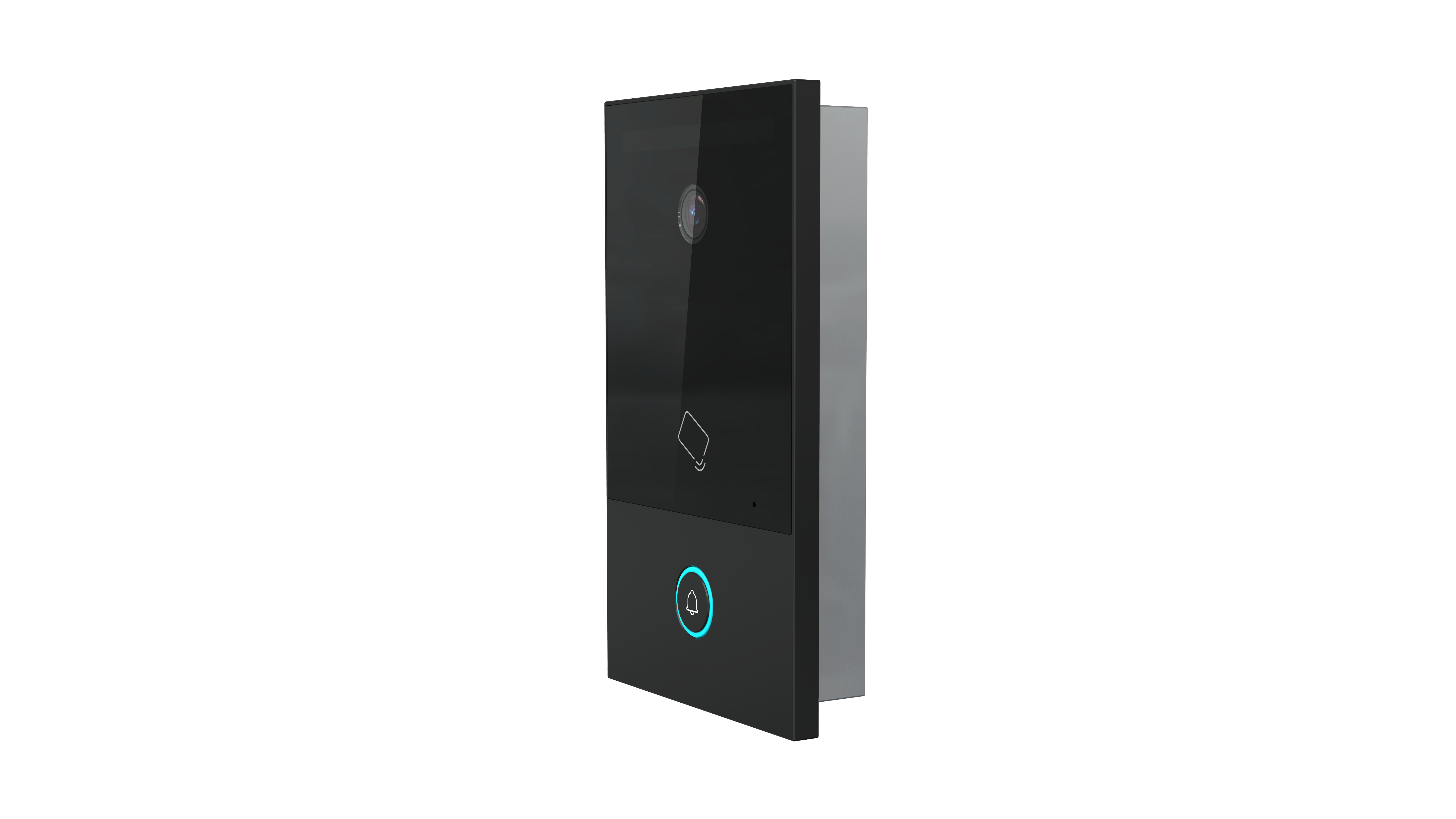

درب باز کن تصویری TC-3000DA-Z

■Digital TCP /IP Intercom

■Support Up to 500

■Color CMOS 1.0 Mega Pixel Video

■Video Intercom Indoor monitors

■Linux OS



TECHNICAL SPECIFICATIONS

Model:     TC-3000DA-Z

System OS Embedded Linux

CPU ARM9

Camera Image Sensor 1.0 MegapixelHDColorCMOS

Supplement Light White LEDs

Viewing Angle Horizontal: 115°; Vertical: 90°

Display      TC-3000DA-Z:

Operation TouchButton , Physical Button

Color   black & silver Edge , silver

Audio:

Input Built-in Microphone

Output Built-in Loudspeaker

Codec G.711 U

Compression Rate 64 kbps

Audio Quality Noise Suppression & Echo Cancellation

Capacity:

Link Indoor Station : 500 IP

Network:

Ethernet: RJ45, 10/100 Mbps adaptive

Protocol TCP/IP

PoE IEEE802.3af/at

Alarm Input Door inspection:+ / - & Tamper detection:+ /-

Relay Output NO / COM / NC

RS485 /

TF Card /

General :

Power Supply DC 12V, Connector

Operating Temperature -25°C ~ +70°C

Operating Humidity 10~90%

Application Environment Outdoor

IP Protection IP54

Installation Wall / Flush Mount

Dimension (WxHxD) 90 x 150 x 30(mm)

Material Aluminum Alloy

Door Lock Relay Unloc
